Saramonic Microphone Preamp for USB-C Smartphone, 2-Track XLR & 3.5mm Mic Mixer + Guitar Interface for Type-C Devices Samsung Galaxy Note 9 8 S8 Xiaomi Huawei LG Android Smartphone Pad (2-Channel)

Price: $179.00
(as of Jan 27, 2024 13:26:16 UTC – Details)

Product Description

Using tip on Smartphone App

We recommend you use the this rig with Apps such as iRig Recorder, MetaRecorder, Cinema-FV 5, SmartRecorder and most internal recording app of your smartphones.

SmartRig+ UC

The Saramonic SmartRig+ UC is a portable microphone/guitar interface for recording professional quality audio. The SmartRig+ makes your recording work easier by connecting professional microphones and guitars (or other instruments) to your android smartphone, tablet.

2 independent channels allow you to connect and control gain on multiple microphones or guitars at the same time. The interface also features 3 types of input to accommodate any set up: two XLR mic inputs, two 1/4″ (6.35mm) guitar inputs, and two 1/8″ (3.5mm) jack inputs for connecting any instrument or microphone. Outputs to a standard USB type-C cable for use with android smartphones, pad. Provides 48V phantom power for microphones, and includes a 3.5mm jack output for playback sound monitoring. The two gain control thumbwheels make it easy to set precise levels.Toggle between Mono and Stereo output modes as necessary. Powered by one 9V battery.

Features

2 Independent Channels
Two XLR Microphone Inputs
Gain Control Knobs for Each Channel
+48V Phantom Power Switch
Connectors: Two 3.5mm (TRS) Microphone Inputs, Two 1/4″ Guitar Inputs, USB Type-C Output
Mono/Stereo Output Switch
3.5mm Headphone Output Jack for Playback Monitoring

Specifications

Frequency Response: 20 Hz to 20 Khz, +/- 0.5 dB
Distortion: Less than 0.01% @ 1 kHz, -30 dBu input
Signal to Noise Ratio: 80 dB @ 1 kHz, -30 dBu input
Gain: +20 dB to Infinity

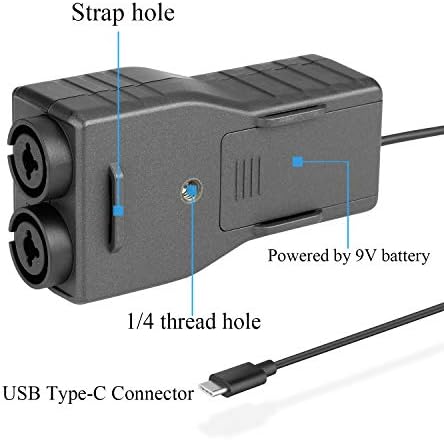

Power Requirement: One 9V Alkaline
Dimensions: 4.7 x 1.6 x 1.6″ (12 x 4 x 4cm)
Weight: 4.6 oz (130g)

Compatibility

Compatibility: USB Type-C devices/Android smartphones, any type of microphones (Dynamic, Ribbon, or Condenser), Guitar.

Package Included

1* Saramonic SmartRig+ UC Unit
1* Solid Nylon Portable Protector Bag in black
1* Velcro Strip
1* User Manual in English
Original Manufactory Package

Compatibility (With Guitar & Smartphone & Handheld Microphone & LED Lights & Handle Grip & Tripod)

Compatibility
IOS Devices, Guitar, Recorder, Mixer
IOS Devices, Guitar and DSLR Camera, Recorder, Mixer
USB Type-C Devices and Guitar
USB Type-C Devices and Guitar
IOS Devices and Guitar

1/4 6.35mm Input
✓
✓
✓
✓
✓

Balanced XLR Input
MONO
Dual/Stereo
MONO
Dual/Stereo
MONO

Connector for Smartphone
3.5mm
3.5mm
USB Type-C
USB Type-C
App MFI Certified Lightning

Support 48V Phantom Power
✓
✓
✓
✓
✓

Monitor
Real-Time Monitor
Real-Time Monitor
Playback Monitor
Playback Monitor
Real-Time Monitor

REC/PLAY Switch

✓

✓

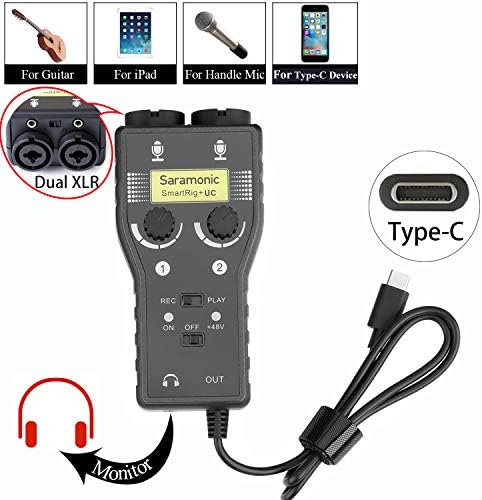

The SmartRig+ UC from Saramonic is an easy solution to connect any professional microphones to any USB Type-C Devices and Guitar
INPUTS: Two 3-pin XLR, Two 3.5mm (TRS), Two 1/4″ (Guitar); OUTPUTS: One USB Type-C Output Connector
PHANTOM POWER: +48V Phantom Switch Provides Power to XLR Inputs
Mono/Stereo Switch, Independent Gain Controls for 2 Channels, Headphone Playback Monitoring Jack
1 Year Saramonic Warranty
