Questyle M15 Headphone Amplifier Portable USB DAC with 4.4mm and 3.5mm Outputs High Resolution Lossless for Smartphones/PC/Laptops

Price: $299.00
(as of Jan 25, 2024 19:08:35 UTC – Details)

Product Description

Welcome to the world of truly mobile HiFi

The era of 5G has brought music streaming from smart devices fully into the mainstream. As more and more music platforms launch lossless audio streaming services, mobile hi-res audio has changed from a neat gimmick into a real and growingly popular way to enjoy high-fidelity music. However, it’s often impractical to use traditional HiFi audio equipment with your smartphone on-the-go, due to size and power consumption. To solve this problem, the M15 was born: it distills all of Questyle’s expertise and technologies into an amazingly powerful yet compact mobile DAC & amp.

Don’t be fooled by its small size. The M15 offers uncompromising performance and best-in-class fidelity, giving you the ultimate portable audio experience.

The M15 contains two of Questyle’s patented CMA (Current Mode Amplification) SiP modules, for a total of four CMA amp engines. This quadruple drive amplification circuitry gives an outstandingly strong output that can drive almost any headphone. Questyle’s Current Mode Amplifiers are characterized by their small footprint, low voltage operation, and minimal power consumption. Current amplification has a naturally low impedance, affording the M15 a bandwidth up to 1MHz, distortion as low as 0.0003%, and the ability to reproduce every detail hidden deep within any track.

Background noise of M15 is lower than -125dB

FFT @1kHz@48kHz(SR)24bit, @3.5mm Po=5.9mW, RL=300Ω

Data from Audio Precision AP2722

Background noise of M15 is lower than -130dB

FFT @1kHz@48kHz(SR)24bit, @4.4mm Po=23.21mW, RL=300Ω

Data from Audio Precision AP2722

DAC Capability PCM：PCM: 32kHz – 384kHz (16/24/32Bit) ; DSD： DSD64(1Bit 2.8MHz) , DSD128(1Bit 5.6MHz), DSD256(1Bit 11.2MHz) Output Interface 3.5mm standard headphone jack x1; 4.4mm balanced headphone jack x1 Output Power 3.5mm:RL=300Ω,Po=11.97mW, Vout(Max)=1.895Vrms,THD+N=0.00045% ; 4.4mm:RL=300Ω,Po=22.60mW, Vout(Max)=2.624Vrms,THD+N=0.00057% Frequency Response ±0.1dB(20Hz-20kHz) Operating System Required Android phone and pad: Android 5.0 and above; PC: Win10 1803 and above; Apple cellphone: iOS (You need to buy an OTG cable for Lightning to Type-C.); Apple computer: mac OS THD + N 0.0003% DAC ESS flagship USB DAC chip ES9281AC

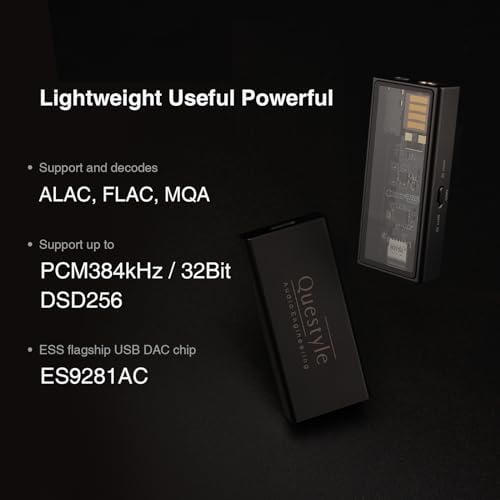

The M15 features the highly acclaimed ESS ES9281AC flagship DAC, which can handle up to PCM384kHz/32bit and DSD256. It’s almost inconceivable that something as small as the M15 can process and reproduce such demanding audio formats.
The M15 contains two of Questyle’s patented CMA (Current Mode Amplification) SiP modules, for a total of four CMA amp engines. This quadruple drive amplification circuitry gives an outstandingly strong output that can drive almost any headphone. Questyle’s Current Mode Amplifiers are characterized by their small footprint, low voltage operation, and minimal power consumption. Current amplification has a naturally low impedance, affording the M15 a bandwidth up to 1MHz, distortion as low as 0.0003%, and the ability to reproduce every detail hidden deep within any track.
The M15 amplifier with a USB Type-C and USB-A connector, you could use it to get a high resolution sound for listening music,playing game,doing chatting,doing living when you are at home or at office.
Clean sound for a great sound, featuring abundant power with high signal-to-noise ratio, low distortion, and almost 0 noise – this is true high-fidelity sound.
What You Get: M15 USB DAC Headphone Amp x1, Type-C to Type-C cable x1, user manual x1, Type-C to USB-A cable x1, and friendly customer service.
Note:As for iphone with lightning connector,we advise you use the lightning to USB camera adapter with our Type-C to USB-A cable,and then connect with our M15 dac so that you can use it with your iphone.
