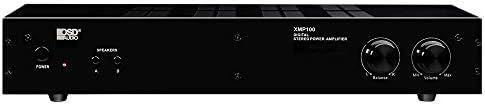

OSD 100W Stereo Amplifier, Dual Source Input, Bass & Treble Control, Auto-On, Class D XMP100

Price: $149.99
(as of Feb 02, 2024 19:21:21 UTC – Details)

Product Description

Features: High Current Power 75 Watts per channel 160 Watts for Bridgeable Outputs Connects to Smartphone & Portable Devices Signal-sensing Dual-Source Switching Balance Knobs and Volume Controls

OSD XMP100 Class D Stereo Amplifier with 2-Channel Source Switch System

75 Watts RMS Per Channel

The OSD Audio XMP100 is a powerful, high current amplifier for home and pro-installation applications. Whether you are expanding a custom home theater or starting a whole house system, the XMP100 delivers the power, sound quality and right feature set.

Experience a true Home Theater Sound Pro-installation applications Accomplishes detailed audio tasks

SOUND QUALITY

Transform your listening experience with this high power, high performance amplifier that improves bass response for a home theater.

DUAL SOURCE SWITCHING

The XMP100 also includes dual source switching to connect two audio sources and toggle between them for greater listening flexibility.

HIGH CURRENT POWER

Rated at 75 watts RMS per channel and bridgeable outputs for 160 watts RMS, the XMP100 can power Dolby surround sound systems and enhance the power of OSD speakers.

CONNECT

Use the XMP100 to connect your portable music device. It includes two RCA signal level inputs, cable marked as red for right and white for left.

Amplifier Class
Class D Class D Class D Class D Class A/B Class D

# of Channels
2 2 2 2 2 1

Power Handling per Channel @ 8 Ohms
25W(RMS)/50W(Max) 50W(RMS)/ 100W(MAX) 75W(RMS)/ 150W(MAX) 125W(RMS)/ 250W(Max) 75W(RMS)/ 150W(MAX) 15W(RMS)/ 30W(MAX)

Power Handling per Channel @ 4 Ohms
45W(RMS)/90W(Max) 75W(RMS)/ 150W(MAX) 150W(RMS)/ 300W(MAX) 175W(RMS)/ 350W(Max) 225W(RMS)/ 450W(MAX) 30W(RMS)/ 60W(MAX)

Frequency Response
20Hz-20kHz, -2dB/+1dB 10Hz-30kHz, -2dB/ +1dB 10Hz ~ 30kHz, -2dB/ +1dB 10Hz-30kHz, -2dB/ +1dB 20Hz to 20kHz, +0.0dB, -0.5dB 20Hz-20kHz

Impedance
8 – 4 Ohm Stable 8 – 4 Ohm Stable 8 – 4 Ohm Stable 8 – 4 Ohm Stable 8 – 2 ohm stable 8 – 4 Ohm Stable

Auto-On Sensing

✓

✓

✓

✓

✓

✓

Dimensions (L x H x D)
(L x H x D) 5.62″ x 1.77″ x 4.92″ (L x H x D): 16.5″ x 2.15″ x 7.65″ (L x W x H): 17″ x 11.5″ x 2″ (L x H x D): 17.5″ x 2″ x 12.5″ (Lx H x D): 16.5″ x 5.25″ x 14″ (L x H x D): 7.5″ x 2.15″ x 5.5″

Rack Mountable

✓

✓

✓

✓

✓

✓

Weight
1.4lbs 4.7lbs 7.9lbs 10lbs 40lbs 2.8lbs

OSD Audio

Optimal Speaker Design (OSD) is engaged in the design, engineering, and distribution of high-quality home and commercial audio products. Our products range in complexity from simple in-ceiling speakers to whole-house audio systems – all with beautiful styling and high-end sound quality. Our U.S.-based research, development, and design team is supported by a network of cutting-edge acoustical, mechanical, and electrical engineers. Together, we create products that combine the latest technology with ease of use for a quality sound experience.

Is Discontinued By Manufacturer ‏ : ‎ No
Product Dimensions ‏ : ‎ 2.15 x 7.65 x 16 inches; 5.05 Pounds
Item model number ‏ : ‎ XMP100
Date First Available ‏ : ‎ November 12, 2016
Manufacturer ‏ : ‎ OSD Audio
ASIN ‏ : ‎ B01N3QXFDG

POWER: The XMP100 has 75 watts RMS per channel and bridgeable outputs for 160 watts RMS. This amp can power Dolby Surround Sound systems and enhance the power of OSD outdoor speakers.
SOUND QUALITY: With Class D amplification, the XMP100 is 89% efficient while creating a cleaner sound. An input of 1.4 volts is needed to reach full output and signal to noise ratio is A-weighted.
SOURCE SWITCHING: Enables users to connect more than one source to the amp. The amplifier has the ability to automatically switch sources from a DVD player to listening to music.
CONTROLS: Balance knobs and volume controls are placed on the front while the treble and bass are located on the back. They are ideal for easy use when needing to adjust the volume up or down.
CONNECT: OSD Audio recommends using a 3.5mm aux to RCA cable to utilize your smartphone on the amp. Connecting your portable device is made easy to plug into the XMP100 in your own home.
