JOYO Wireless Audio Interface Transmitter and Receiver for Live Streaming Amplifier 3.5mm Stereo Recording and Playing with Phone Tablet & PC Background Music, with Type USB C & Lightning (JW-05R)

Price: $49.99
(as of Jan 26, 2024 01:11:28 UTC – Details)

Product Description

Audio Internal Recording-Single Channel

JW-05R Mini wireless devices supports for live audio Internal-recording including 2 receivers and 1 transmitter. Multiple Functions

2 way signal transmission-both wireless audio Internal recording and playing music functions. Low latency

Plug and play, supports headphone monitoring.Low latency: 9ms and low noise.

Details Ligntning & Type-C Jack

Receiver includes 2 different interfaces to connect laptop and smartphones with Ligntning and Type-C ports. Constant Recharging

Feature to support power supply for smartphone just in case smartphone runs out of battery while you’re live streaming. Monitor Conversion Cable

Includes 2 Monitor Headphone Conversion Cables.Ligntning & Type-C Jack. Rechargeable

3.5mm interface transmiter.Builts in battery up to 5hrs battery life.

Specification:

Frequency 2400~2483.5MHz Frequency response 20Hz~22kHz+/-1dB SNR 90dB Transmission delay 9mS Sampling rate 48KHz Bit depth 24 bits The maximum distance 15-20m (Barrier-free working distance)/10-15m (Obstacle distance or the noise is too loud) Charging Input voltage DC4.8~5.4V Receiver Lightning and Type-C port with no battery, plug and play,no need to charge

Wireless Internal Recording Live Streaming Wireless System

It adopts 2.4G wireless system, 2-way signal communication, it supports both wireless live streaming and wireless playing functions.Transmitting terminal: built-in battery, more than 8hrs battery life.Receiving terminal: built-in OTG audio interface function, cell phone supplies power for it. Moreover, it can supply power for cell phone while charging.

JW-05R

Wireless Devices

Audio Interface

Item Name

Guitar System

Type-C & Lightning

Receiver Type

1/4-Inch

3.5mm

Transmitter Type

1/4-Inch

Smartphone,Speakers

Compatible Devices

Electric Guitar,Bass

Live Streaming

Applicable Scene

Guitar Show

2.4GHz

Frequency

2.4GHz

Audio Interface

Item Name

Microphone System

Type-C & Lightning

Receiver Type

XLR

3.5mm

Transmitter Type

XLR

Smartphone,Speakers

Compatible Devices

Mic,Amp,Mixer,Camera

Live Streaming

Applicable Scene

Outdoor Recording

2.4GHz

Frequency

5.8GHz

JW-03 MW-1

How to pair the transmitter and receiver?

Firstly, receiver connects with smartphone,blue light flashing. Then, press transmitter button for 2 seconds and the blue light flashes. When transmitter and receiver lights become constant blue light, it indicates that the pairing is successful.

How can I know whether it is fully charged?

Only the transmitter needs to be charged. Low battery: Flashing red.When charging: the red light is always on. When full: The red light disappears.

What are the precautions for use?

Wireless transmitter and receiver, please charge 1 hour after receiving the goods.It is recommended to reduce the surrounding electromagnetic and signal interference at a distance of 10-15m (barrier-free), and check whether the connection is stable.

What should I do when I have problem with the product?

Please read the instructions carefully. If you have any questions, please feel free to send message to the seller via your order details, we would provide the best service to satisfy you.

2.4G band wireless audio interface for live streaming, 2-way signal communication, supports both live streaming and wirelesss playing function.

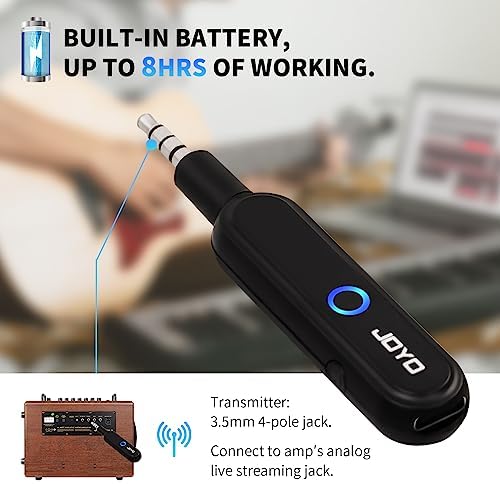

Transmiter: 3.5mm interface for amps or mixers, low noise and low latency, built-in battery, up to 5hrs battery life.

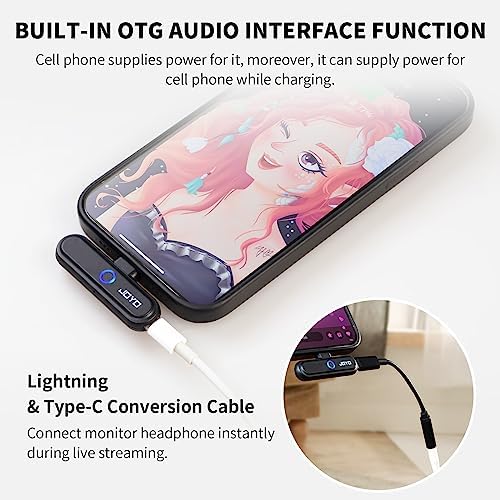

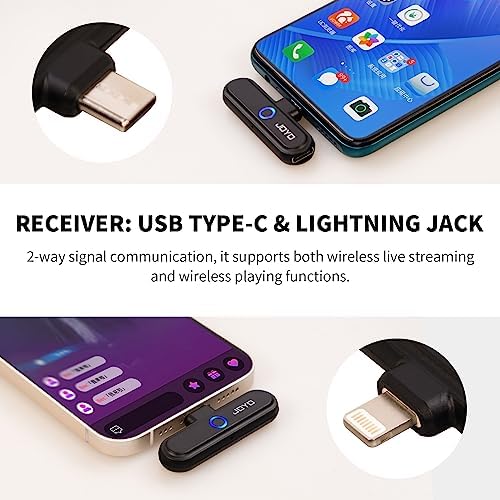

Receiver: Type-C & Lightning interface for smartphone, plug & play. Built-in OTG audio interface function, it can supply power for smartphone by cables while charging.

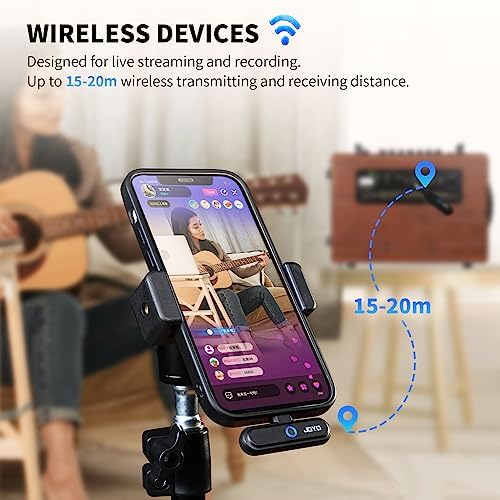

Wireless audio system for live streaming about 20 meters linear distance when there is no block nor interference.
JOYO has over decade of brand reputation, please send the message if you have any problem after receiving on Amazon via “Contact Seller”.
