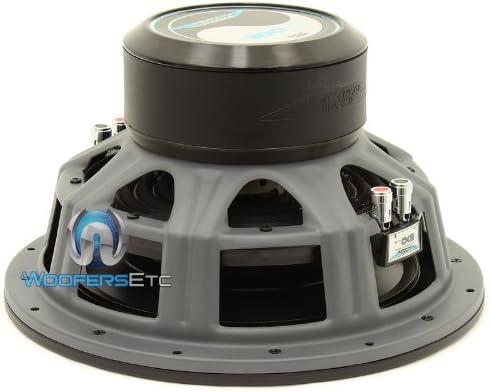

IDQ10 V.4 D2 – Image Dynamics 10″ 1000W Peak Dual 2-Ohm IDQ V.4 Series Subwoofer

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
To report an issue with this product or seller, click here.
Is Discontinued By Manufacturer ‏ : ‎ No
Product Dimensions ‏ : ‎ 15 x 15 x 9.5 inches; 15 Pounds
Item model number ‏ : ‎ IDQ10 D2 V.4
Date First Available ‏ : ‎ July 8, 2013
Manufacturer ‏ : ‎ Image Dynamics
ASIN ‏ : ‎ B00DTVK5QQ

10″ Dual 2 ohm IDQ V.4 Series Subwoofer | Mica-reinforced polypropylene cone woofer | Parabolic roll surround | Ability to custom match the basket color to your personal installation | Conex spider with integrated tinsel leads | New V4 Metal Basket | High-temperature aluminum voice coil | Proprietary voice coil attachment design
Power Handling: Peak: 1000 watts | RMS: 500 watts | Recommended Power Range: 50-500 watts
Nominal Impedance (IMP): Dual 2 Ω | DC Resistance (Re): 1.85 Ω | Resonance Frequency (Fs): 31.77 Hz | Equivalent Volume (Vas): 44.71 L | Electrical Q Factor (Qes): 0.79 | Mechanical Q Factor (Qms): 2.90 | Total Q Factor (Qts): 0.62 | Peak Excursion (Xmax): 28 mm | Piston Area (Sd): 383.58 cm2 | Sensitivity: 84.50 dB 1w/1m
Sealed Enclosure Suggestion: 1.1 cu.ft. | Ported Enclosure Suggestion: 1.45 cu.ft. | Displacement: 0.07 cu.ft. | Mounting Depth: 5.81 in | Outside Diameter: 11.04 in | Cutout: 9.57 in
