ASOULMSSH Type C Ultimate Tiny USB DAC Headphone Amplifier High Resolution Audio 3.5mm & 4.4mm Balanced Output Portable Lossless for Smartphones/PC/Laptops/Players/Music Enthusiasts

Price: $77.99
(as of Jan 28, 2024 14:29:07 UTC – Details)

Product Description

Portable USB DAC Headphone Amplifier is designed for music enthusiasts, the device does not have a headphone jack then we create one.

Portable USB DAC features compact, lightweight, and simple. Colour: BLACK, Size: 2.24 * 0.78 inches, Weight: 0.63 ounces

Portable Headphone Amplifier, High Resolution USB DAC for Mobile Phones, Players, and Laptops Devices

Device name is called USB DAC Headphone amplifierAppearance 2.24×0.78 inches, small and simpleWith 3.5 single-ended + 4.4 balanced dual headphone jack output portDesign TYPC input interfaceMaster controller CT7601PR, two AK4493SEQ DAC, two RT6863D op-amp chipsSampling rate up to 32bitsPcm768KHZ,DSD(Native)512Two buttons to adjust the AC volume, switch between high and low gain, five filter optionsCompatible with Android/iOS/Windows/Mac and other operating systems

DAC dual core configuration, mainstream configuration

Dual chip support, master control CT7601PR+AK4493SEQ.PCM decoding power up to 32 bits 768 KHZ, DSD (Native) 512.It is a leader in portable HiFi decoding earphone configurations.

Portable headphone amplifier player architecture, clock, DAC chip, power supply and other usb dac modules, independent design prototype architecture

The biggest difference between a player architecture and a non player architecture is:

Non player USB decoding chip, D/A converter clock, and power management module are all integrated modules.The player architecture with the master CT7601PR, DAC-AK4493SEQ, dual operational amplifier chips, clock, and power module are independently designed.

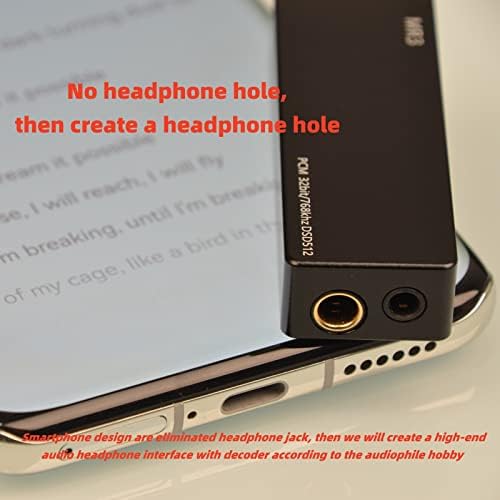

Most smartphones don’t have a headphone jack, so let’s create one to facilitate audiophiles to listen to high-quality music, only can’t think of it, no can’t do it.

Most smartphones don’t have a headphone jack, so we’ll create a headphone jack adapter that supports audio decoding capabilities.

One end of the USB DAC decoding earphone is linked to a smartphone, computer, or playback device through a TYPE C to TYPE C.The other end is directly plugged into our high-end wire earphones through a well-designed earphone jack.

The USB DAC decoding earphone TYPE C adapter cable is designed to match customer needs.You can access multiple types of interfaces such as TYPE C to TYPE C, and TYPE C to Lighting.

DAC
CT7601PR+CS43131 CT7601PR+ES9038Q2M CT7601PR+AK4493+RT6863D*2

Dac input port
Type-C Type-C or Lighting Type-C or Lighting

Decoding specification
DSD（Dop）128，DSD（Native）256 PCM768KHZ/32bit，DSD（Dop）256，DSD（Native）512 PCM768KHZ/32bit，DSD（Dop）256，DSD（Native）512

Dac output
3.5mm(PO) 3.5mm(PO)+4.4mm(BAL) 3.5mm(PO)+4.4mm(BAL)

Size
1.77*0.55inches 2.24*0.78inches 2.24*0.78inches

Weight
0.42ounce 0.63ounce 0.63ounce

Indicator light display

✓

✓

✓

Output power
65mW@32Ω（PO） 100mW@32Ω（PO），200mW@32Ω（BAL） 125mW@32Ω（PO），240mW@32Ω（BAL）

Signal-to-noise ratio
125dB 122dB(PO)，122dB(BAL) 120dB(PO)，122dB(BAL)

Distortion
-113dB -100dB -105dB

High-resolution USB C DAC with up to 32bits PCM768KHZ and Native DSD512 for an enhanced audio experience.at the same time this usb dac is lightweight and small in size, it is a portable dac
Dac amp combo features two independent op-amp devices and an independent circuit design for superior sound quality.
Portable headphone amp equipped with both 3.5mm single-ended and 4.4mm balanced output ports to cater to the diverse needs of audiophiles.
headphone dac amp amp dac iphone dac Designed for music enthusiasts, voice enthusiasts, and musicians who seek exceptional treble and bass performance.
Portable dac headphone amp、usb sound adapter compatible with various devices including PC, iPhone, and headphones, making it a versatile and portable audio solution.
